NW-SMART4G CB3
NW-SMART4G CB3

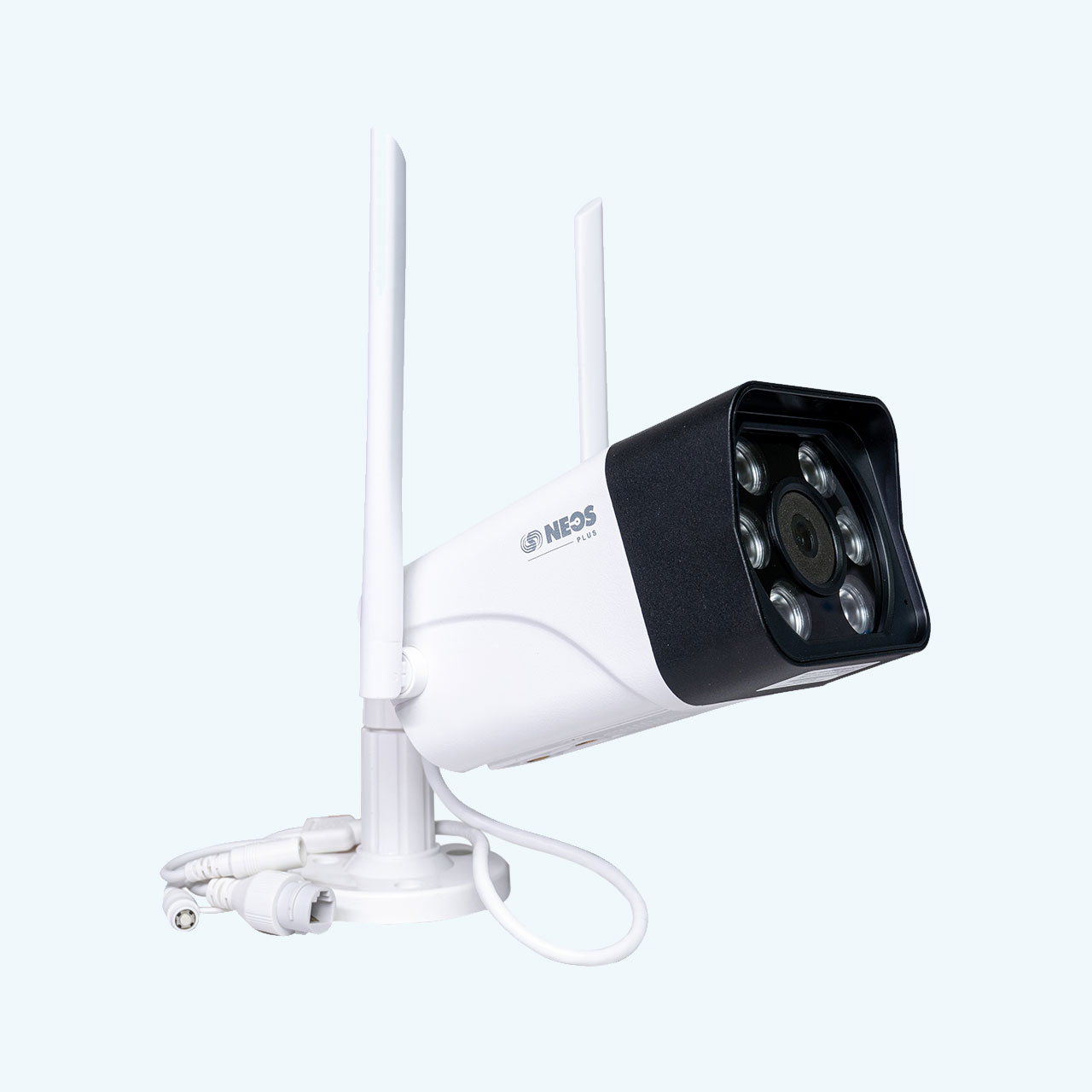

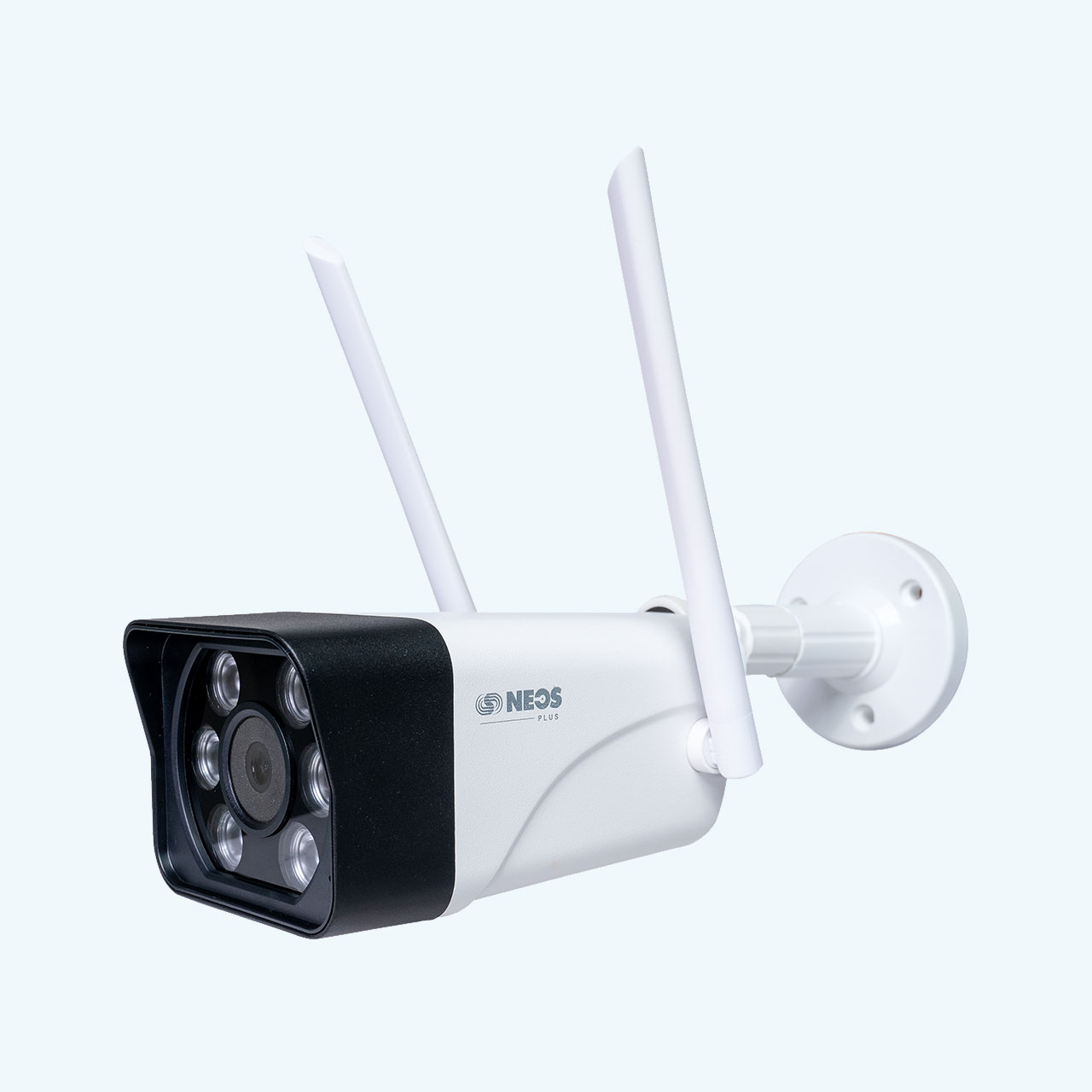

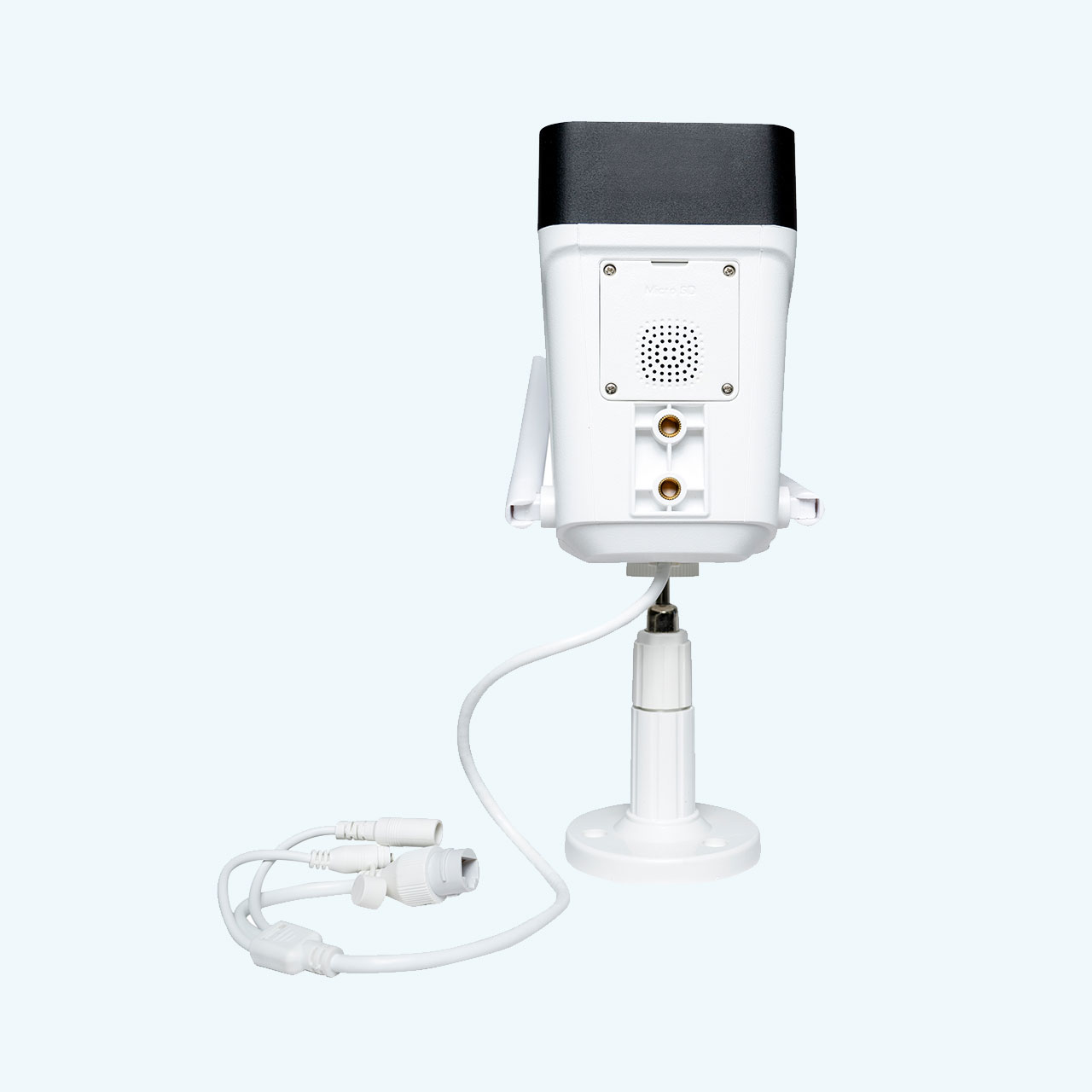

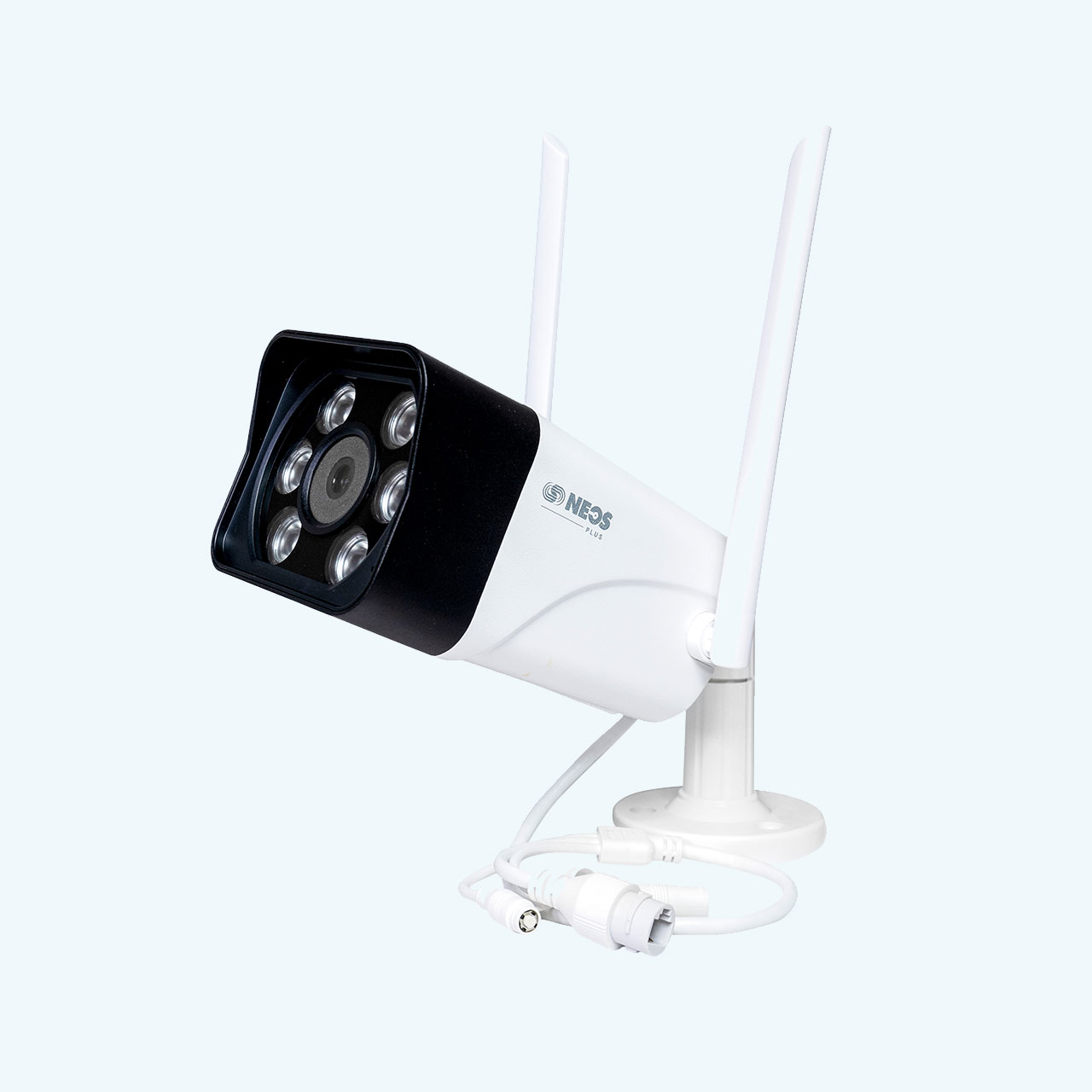

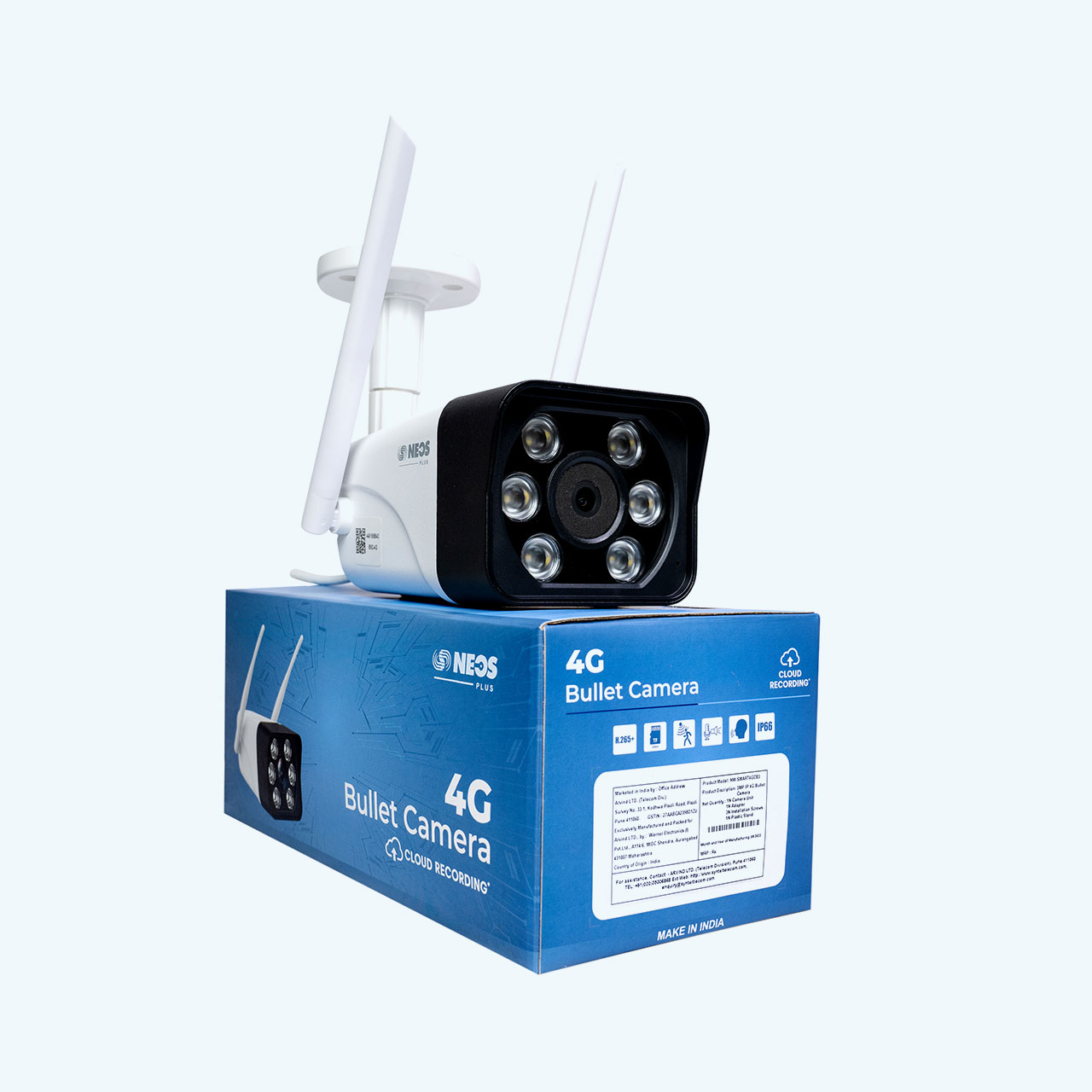

3MP 4G All time Color IP Bullet Camera
Enhanced productivity
Hassle-free Installation
Rich Features
Easy Maintenance
LED Indication
6 Extensions
TEC Certified
EMI-EMC Certified
1/2.7″ 3MP CMOS Image Sensor
Max resolution 2304×1296@20fps
Video Compression H.265/H.264
DWDR, 3D DNR, HLC, BLC
IR Cut Filter with Auto Switch
4mm Fixed Lens
Two way Audio Built-in-Mic/Speaker
6 Array LED with 30M distance
30 Mtrs IR Range, IP66
| Camera | |
| Image Sensor | 1/2.7″ CMOS Sensor |
| Signal System | PAL/NTSC |
| Min. Illumination | Color : 0.01 Lux, BW: 0 Lux |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | IR Cut Filter with Auto Switch |
| Wide Dynamic Range | DWDR |
| Angle Adjustment | Bracket, pan 0~360°, tilt 0~75°, rotate 0~360° |
| Lens | |
| Lens Type | Fixed |
| Focus | 4mm |
| Lens Mount | M12 |
| Aperture | F1.6, Fixed |
| FOV | Horizontal field of view: 80° (4mm) |
| Illuminator | |
| IR LEDs | 6 Array LED |
| IR Range | Up to 30m |
| S/N Ratio | ≥39.1db |
| White LEDs/Warm lights | Yes |
| Compression Standard | |
| Video Compression | H.265/H.264 |
| Video Bit Rate | 16Kbps~4Mbps adjustable Support CBR/VBR |
| Audio Compression | AAC/G711A |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 2304X1296@25fps |
| Main Stream | PAL: 25fps ( 2304 1296, 1920 1080, 1280 720) |
| NTSC: 30fps (2304 1296, 1920 1080, 1280 720) | |
| Sub Stream | PAL: 25fps (704 576, 704 288, 640 360, 352 288) |
| NTSC: 30fps (704 480, 704 240, 640 360, 352 240) | |
| Image Setting | Saturation, brightness, contrast, sharpness, chroma |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | N/A |
| OSD | 16 16, 32 32, 48 48, 64 64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Privacy Mask | Yes, 4 Zone Selectable |
| Mirror Flip | Off / horizontal mirroring / vertical mirroring / 180° rotation |
| Feature | |
| Alarm Trigger | Motion Detection, Mask Alarm, IP Address Conflict |
| Video Analytics | NA |
| Network | |
| Communication Interface | Rj45 10/100 mbps |
| Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
| System Compatibility | N1 Protocol |
| Remote Connection | Support 3 User Max |
| Client | Yes |
| Web Version | |
| Interface | |
| Communication Interface | 4G/LAN Network Cable |
| Audio I/O | Yes |
| Reset Button | Yes |
| On-board storage | Yes Up to 128GB |
| General | |
| Language | English |
| Operating Conditions | -40 ～60 , 0～95% RH |
| Power Supply | DC 12V±25% |
| Power Consumption | ≥5W |
| Protection | IP66 |
| Dimensions | W71XH162XL204 |
| Weight | Weight Net: 0.460Kg Weight Gross:0.615Kg |
`
NW-SMART4G CB3
3MP 4G All time Color IP Bullet Camera
