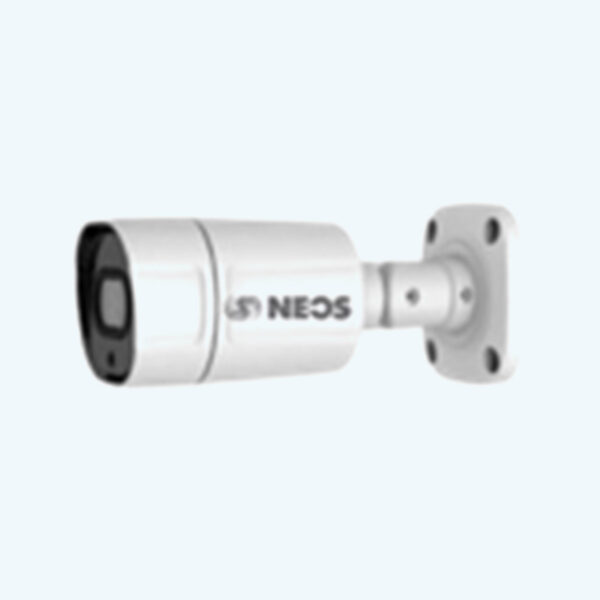

NP-IBM14
NP-IBM14
4MP Fixed IR Bullet Camera
Enhanced productivity
Hassle-free Installation
Rich Features
Easy Maintenance
LED Indication
6 Extensions
TEC Certified
EMI-EMC Certified
1/2.7″ 4MP CMOS Sensor
Max resolution (2560 × 1440) @20fps
Video Compression H.265/H.264
DWDR, BLC, 3D DNR, HLC
3.6mm fixed lens
Built in Microphone
2 IR LED with 30M distance
30 Mtrs IR Range, IP66, PoE
| Camera | |
| Image Sensor | 1 / 2.7″ CMOS |
| Signal System | PAL / NTSC |
| Min. Illumination | Color: 0.01Lux@ (F1.6, ACG ON), B / W: 0Lux with IR |
| Shutter Time | 1s to 1 / 100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | DWDR |
| Angle Adjustment | Bracket, pan 0~360°, tilt 0~75°, rotate 0~360° |
| Lens | |
| Lens Type | Fixed |
| Focus | 3.6 mm |
| Lens Mount | M12 |
| Aperture | F1.6, Fixed |
| FOV | Horizontal field of view: 90.6° , 59.2.°(V), 98.4°(D) |
| Illuminator | |
| IR LEDs | 2 |
| IR Range | Up to 30m |
| Wavelength | 850nm |
| White LEDs / Warm Lights | NA |
| White Light Distance | NA |
| Compression Standard | |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression | G.711 / G.711U / ADPCM |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 2560*1440@20fps |
| Main Stream | PAL: 25fps (2560*1440@20fps,1920 1080, 1280 720) |
| NTSC: 25fps (2560*1440@20fps,1920 1080, 1280 720) | |
| Sub Stream | PAL: 25fps (704 576, 704 288, 640 360, 352 288) |
| NTSC: 30fps (704 480, 704 240, 640 360, 352 240) | |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC / 3D DNR / HLC |
| ROI | N / A |
| OSD | 16 16, 32 32, 48 48, 64 64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Privace Mask | Yes, 4 regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection, Mask Alarm, IP Address Conflict |
| Network | |
| Protocols | TCP / IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
| System Compatibility | ONVIF |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M self adaptive Ethernet port |
| Audio I / O | Built in Mic |
| General | |
| Web Client Language | 16 languages |
| English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Farsi, Arabic, Vietnamese | |
| Operating Conditions | -40 ～60 , 0～95% RH |
| Power Supply | DC 12V±25%, PoE (802.3af) |
| Power Consumption | MAX: 6W (12V) MAX: 7W (PoE) |
| Protection | IP66 |
| Dimensions | 186x66x67 |
| Weight | Metal: 0.45Kg |
`
