NT-IBM12
NT-IBM12

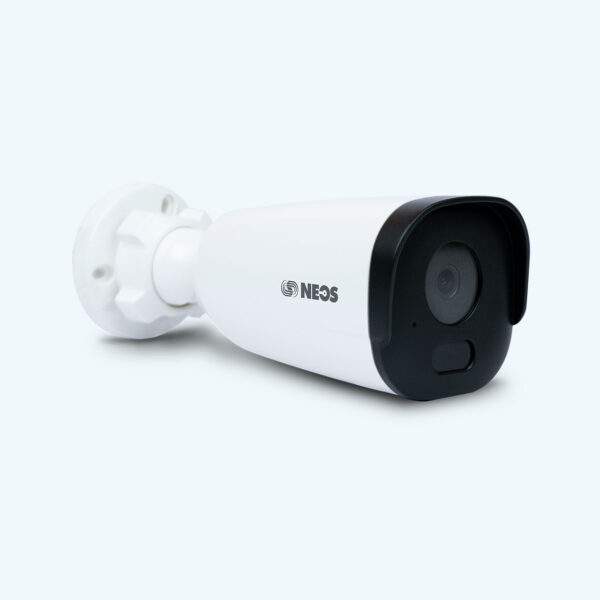

2MP Fixed IR Bullet Camera
Enhanced productivity
Hassle-free Installation
Rich Features
Easy Maintenance
LED Indication
6 Extensions
TEC Certified
EMI-EMC Certified
1/2.8″ 2MP CMOS Image Sensor
Max resolution (1920 × 1080) @25/30fps
Video Compression S+265/H.265/H.264
DWDR, HLC, Smart Defog
4mm fixed lens
Built-in Microphone
50 Mtrs IR Range, IP67, PoE
| Camera | |
| Image Sensor | 1 / 2.8″ CMOS |
| Signal System | PAL / NTSC |
| Min. Illumination | Color: 0.02Lux@ (F2.0 , ACG ON) , B / W: 0Lux with IR |
| Shutter Time | 1s to 1 / 100 , 000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | Digital WDR |
| Angle Adjustment | Bracket , pan 0~360° , tilt 0~75° , rotate 0~360° |
| Lens | |
| Lens Type | Fixed |
| Focus | 4mm |
| Lens Mount | M12 |
| Aperture | F2.0 , Fixed |
| FOV | Horizontal field of view: 83.3（° 4mm） ; Vertical field of view: 46.8°(4mm) |
| Illuminator | |
| IR LEDs | 2 |
| IR Range | Up to 50m |
| Wavelength | 850nm |
| White LEDs / Warmlights | N / A |
| Compression Standard | |
| Video Compression | S+265 / H.265 / H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression | G.711 / G.711U / ADPCM |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 1920 1080 |
| Main Stream | PAL: 25fps (1920 1080 , 1280* 720 , 704 *576 , 640 *480) |
| NTSC: 30fps (19201080 , 1280* 720 , 704* 480 , 640* 480) | |
| Sub Stream | PAL: 25fps (704 *576 , 704 *288 , 640* 360 , 352* 288) |
| NTSC: 30fps (704* 480 , 704* 240 , 640 *360 , 352* 240) | |
| Image Setting | Saturation , brightness , contrast , sharpness , adjustable by client software or web browser |
| Image Enhancement | BLC / 3D DNR / HLC |
| ROI | N / A |
| OSD | 16X16 , 32X32 , 48X48 , adaptable size , Letters Such as Week , Date , Time , Total 3 Regions |
| Privacy Mask | Yes , 4 regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection , Mask Alarm , IP Address Conflict |
| Video Analytics | Tripwire , Perimeter |
| Network | |
| ANR | N / A |
| Protocols | TCP / IP , HTTP , FTP , DHCP , DNS , DDNS , MULTICAST , IPV4 , NTP , UDP , Telnet , ICMP , RTP , RTSP , UPnP |
| System Compatibility | ONVIF (PROFILE S / T / G) , SDK , P2P(Mutually exclusive with Profile G) |
| Remote Connection | 7 |
| Client | Easy Live , SNEOSNT |
| Web Version | Web5 |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio I / O | Mic in |
| Reset Button | N / A |
| General | |
| Web Client Language | 15 languages |
| English , Russian , Spanish , Korean , Italian , Turkish , Simple Chinese , Traditional Chinese , Thai , French , Polish , Dutch , Hebraism , Arabic , Vietnamese | |
| Operating Conditions | -30 ～60 °C , 0～95% RH |
| Power Supply | DC 12V±25% , PoE (802.3af) |
| Power Consumption | MAX: 6W (12V) MAX: 8W (PoE) |
| Protection | IP67 , Lightning protection , surge protection and voltage transient protection meets |
| Dimensions | 208×81×81mm(8.19×3.19×3.19inch) |
| Weight | Metal + Plastic: 0.35Kg (0.77lb) |
`
