NT-IBN14
NT-IBN14

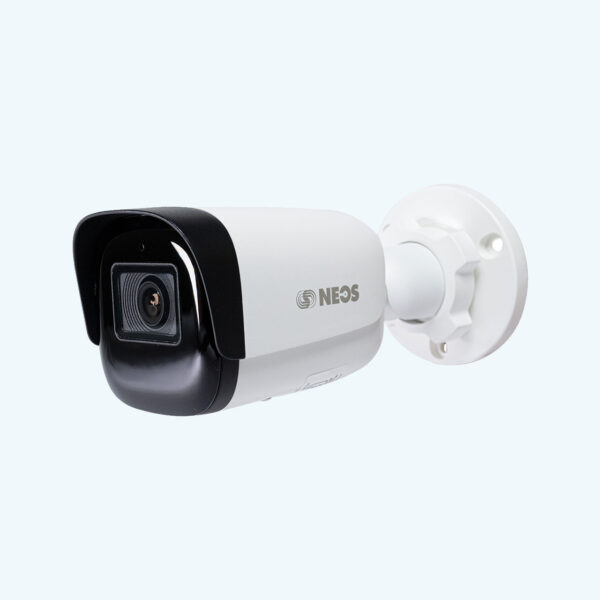

4MP Fixed Starlight IR Bullet Camera
Enhanced productivity
Hassle-free Installation
Rich Features
Easy Maintenance
LED Indication
6 Extensions
TEC Certified
EMI-EMC Certified
1/2.8″ 4MP CMOS Image Sensor
Max resolution (2592 × 1520) @25fps
Video Compression S+265/H.265/H.264
WDR 120dB, HLC, Smart Defog
4mm fixed lens
Built-in Microphone
50 Mtrs IR Range, IP67, PoE
| Camera | |
| Image Sensor | 1 / 2.8″ CMOS |
| Signal System | PAL / NTSC |
| Min. Illumination | Color: 0.002Lux@ (F1.6 , ACG ON) , B / W: 0Lux with IR |
| Shutter Time | 1s to 1 / 100 , 000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Bracket , pan 0~360° , tilt 0~75° , rotate 0~360° |
| Lens | |
| Lens Type | Fixed |
| Focus | 2.8mm / 4mm |
| Lens Mount | M12 |
| Aperture | F1.6 , Fixed |
| FOV | Horizontal field of view: 93.8° (2.8mm) / 78° (4mm) |
| Illuminator | |
| IR LEDs | 2 |
| IR Range | Up to 50m |
| Wavelength | 850nm |
| White LEDs / Warm lights | N / A |
| Compression Standard | |
| Video Compression | S+265 / H.265 / H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression | G.711 / G.711U / ADPCM |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 2592×1520 |
| Main Stream | PAL: 25fps (25921520 , 2560 1440 , 2304 1296 , 1920 1080 , 1280 720) |
| NTSC: 25fps (25921520 , 25601440) , 30fps (2304 1296 , 1920 1080 , 1280 720) | |
| Sub Stream | PAL: 25fps (704 576 , 704 288 , 640 360 , 352 288) |
| NTSC: 30fps (704 480 , 704 240 , 640 360 , 352 240) | |
| Image Setting | Saturation , brightness , contrast , sharpness , adjustable by client software or web browser |
| Image Enhancement | BLC / 3D DNR / HLC |
| ROI | N / A |
| OSD | 16 16 , 32 32 , 48 48 , 64 64 , adaptable size , Letters Such as Week , Date , Time , Total 3 Regions |
| Privace Mask | Yes , 4 regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection , Mask Alarm , IP Address Conflict |
| Video Analytics | Tripwire , Perimeter |
| Network | |
| ANR | Yes , auto store video in SD card when NVR disconnected , and upload video to NVR when resumed connection (Only Support NT-SERIES ANR NVR) |
| Protocols | TCP / IP , HTTP , FTP , DHCP , DNS , DDNS , MULTICAST , IPV4 , NTP , UDP , Telnet |
| System Compatibility | ONVIF (PROFILE S / T / G) , SDK , CGI (IE) , P2P(Mutually exclusive with Profile G) |
| Remote Connection | 7 |
| Client | Netvideo , videosight |
| Web Version | Web5 |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio I / O | Mic in |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot , up to 512 GB |
| General | |
| Web Client Language | 16 languages |
| English , Russian , Spanish , Korean , Italian , Turkish , Simple Chinese , Traditional Chinese , Thai , French , Polish , Dutch , Hebraism , Farsi , Arabic , Vietnamese | |
| Operating Conditions | -35 ～65 , 0～95% RH |
| Power Supply | DC 12V±25% , PoE (802.3af) |
| Power Consumption | MAX: 6W (12V) MAX: 7W (PoE) |
| Protection | IP67 , Lightning protection , surge protection and voltage transient protection meets |
| Dimensions | 160.8 68×74.5mm (6.33 2.68 2.93inch) |
| Weight | Metal + Plastic: 0.3Kg (0.66lb) Metal: 0.48Kg (1.06lb) |
`
