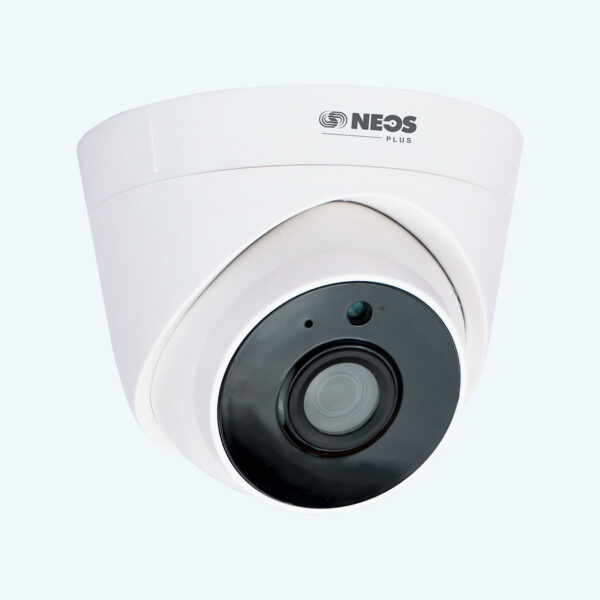

NT-IDN12
NT-IDN12
2MP IR Dome Camera
Enhanced productivity
Hassle-free Installation
Rich Features
Easy Maintenance
LED Indication
6 Extensions
TEC Certified
EMI-EMC Certified
1/2.9″ 2MP CMOS Image Sensor
Max resolution (1920 × 1080) @25/30fps
Video Compression S+265/H.265/H.264
DWDR 80dB, HLC, Smart Defog
2.8mm fixed lens
Built-in Microphone, SD Card Slot
30 Mtrs IR Range, IP66, PoE
| Camera | |
| Image Sensor | 1 / 2.9″ CMOS |
| Signal System | PAL / NTSC |
| Min. Illumination | Color: 0.05Lux |
| B / W: 0.01Lux | |
| Shutter Time | 1s to 1 / 100 , 000s |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Day& Night | IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 100dB |
| Digital Noise Reduction | 3D DNR |
| Compression Standard | |
| Video Compression | S+265 / H.265 / H.264 |
| Video Bit Rate | 32Kbps~8Mbps |
| Image | |
| Max. Image Resolution | 1920×1080 |
| Frame Rate | PAL:1080p@25fps，960p@25fps，720p@25fps，D1@25fps，VGA@25fps |
| NTSC:1080p@30fps，960p@30fps，720p@30fps，D1@30fps , VGA@30fps | |
| Mainstream | 1080P(1920*1080) |
| Substream | 4CIF（704×480） |
| Image Settings | Brightness , Saturation , Contrast , Flip Mode Adjustable by Client Software or Web Browser |
| HLC | Y |
| Smart Defog | Y |
| ROI | Y |
| Privacy Mask | Y |
| OSD | 16×16 , 32×32 , 48×48 , Size Letters Such as Week , Date , Time , Total 1 Regions |
| Network | |
| NTP | Y |
| Alarm Trigger | Motion Detection / IP Conflict / MAC Conflict |
| Protocols | TCP / UDP / HTTP / DHCP / DNS / NTP / RTSP |
| System Compatibility | ONVIF (Profile S) |
| Interface | |
| Audio Input | N / A |
| Audio Output | N / A |
| Communication Interface | 1-ch RJ45 10M / 100M Ethernet Interface |
| On-board Storage | N / A |
| General | |
| Language | English , Simplified Chinese , Traditional Chinese , Spanish , Italian , Korean , Turkish , Russian , Thai , |
| polish , French | |
| Operating Conditions | -35℃～60℃ , 0～95% RHG |
| Power Supply | DC 12 V ± 25% , POE |
| Power Consumption | MAX 7.5W（POE），MAX 6W（DC12V） |
| IR Light | 1 |
| IR Distance | 30m |
| Impact Protection | IP66 |
| Dimensions | 115mm(diameter)*97mm(height) |
| Weight | 0.5KG |
`
NT-IDN12
2MP IR Dome Camera
