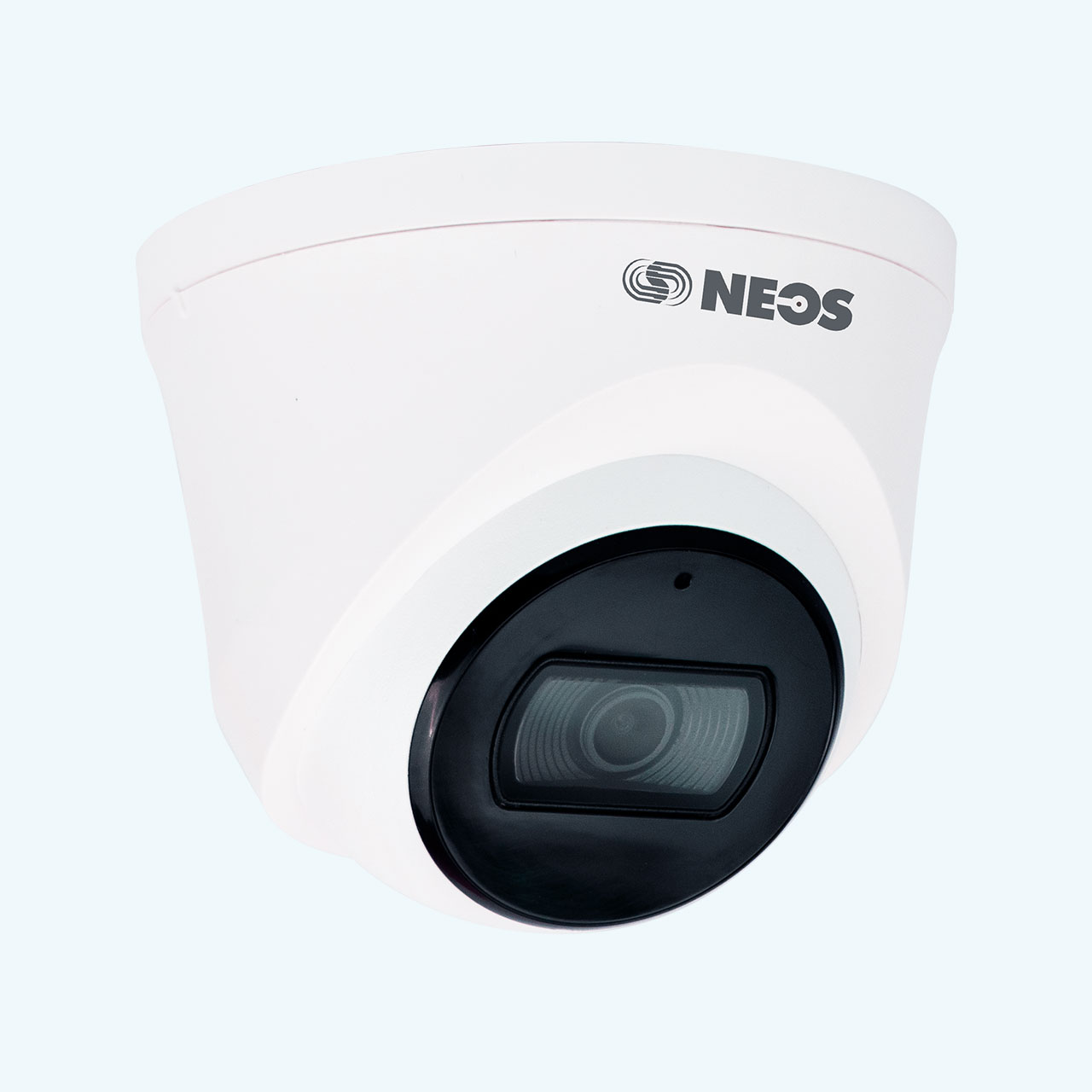

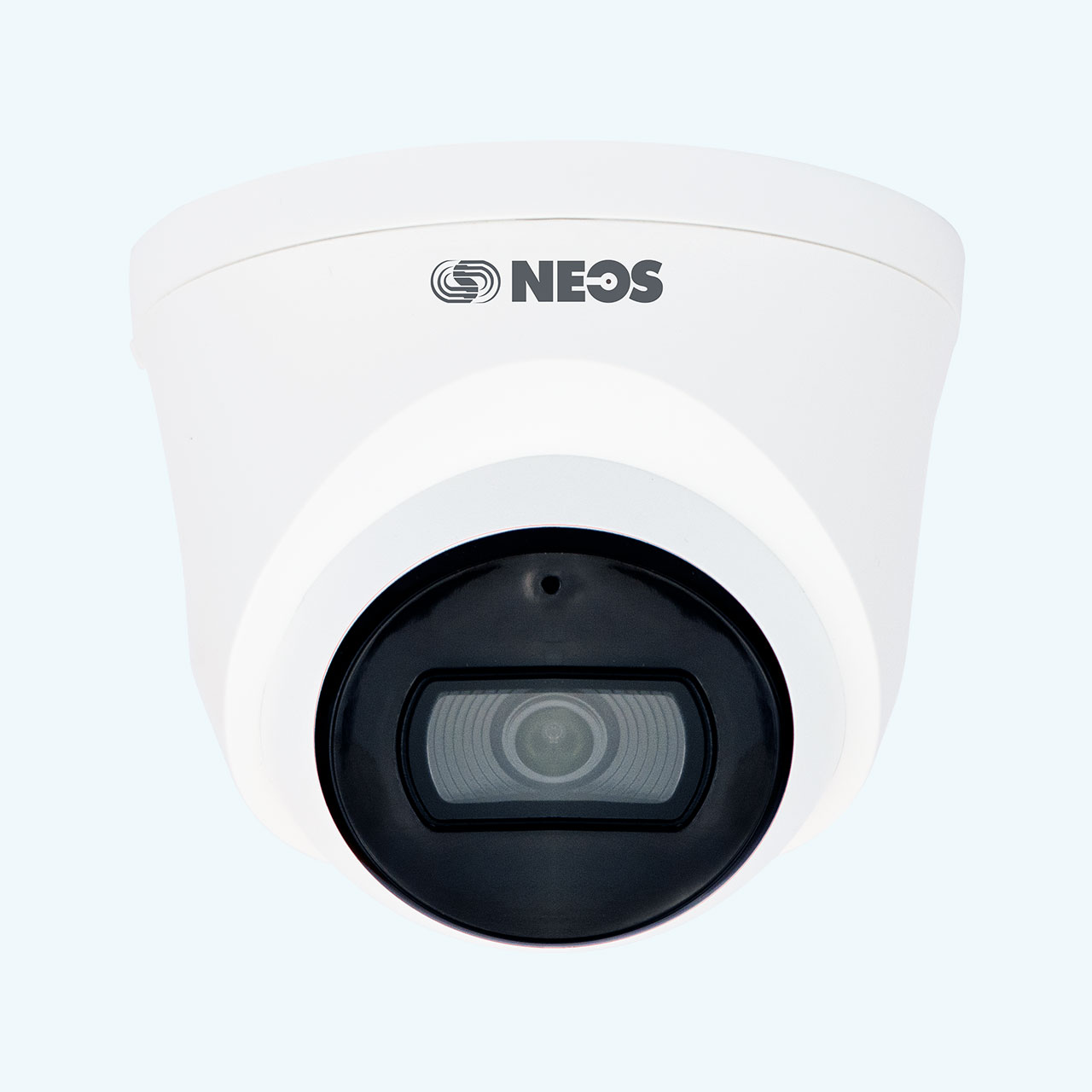

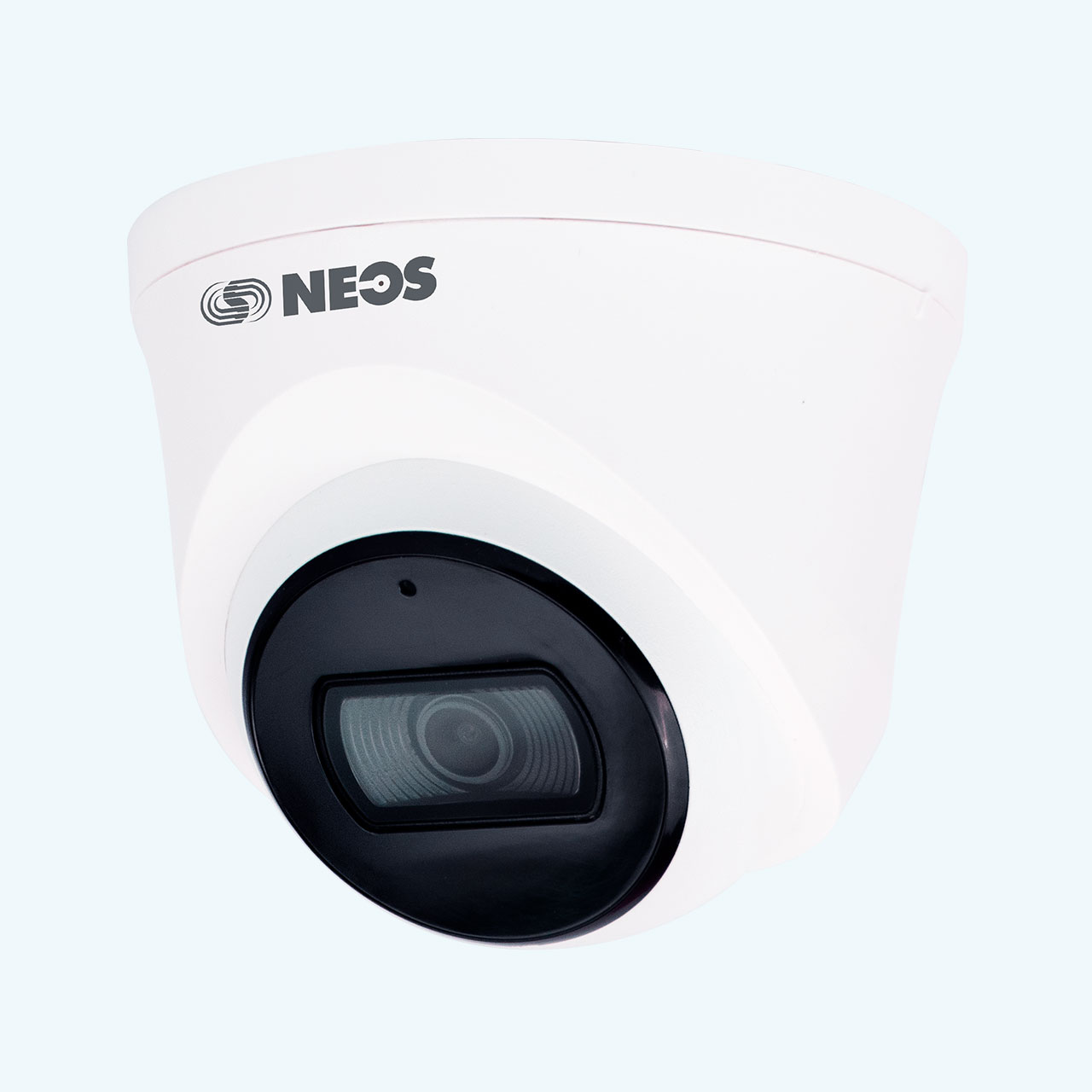

NT-IDN14
NT-IDN14
4MP H.265 IR Dome Camera
Enhanced productivity
Hassle-free Installation
Rich Features
Easy Maintenance
LED Indication
6 Extensions
TEC Certified
EMI-EMC Certified
1/2.8″ 4MP CMOS Image Sensor
Max resolution (2592 × 1520) @25fps
Video Compression S+265/H.265/H.264
WDR 120dB, HLC, Smart Defog
4mm fixed lens
Built-in Microphone, SD Card Slot
30 Mtrs IR Range, IP67, PoE
| Camera | |
| Image Sensor | 1 / 2.8″ CMOS |
| Signal System Min. Illumination | PAL / NTSC |
| Color: 0.002Lux@ (F1.6 , ACG ON) , B / W: 0Lux with IR | |
| Shutter Time Day & Night | 1s to 1 / 100 , 000s |
| Dual IR Cut Filter with Auto Switch | |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | pan 0~340° , tilt 0~75° , rotate 0~360° |
| Lens | |
| Lens Type Focus | Fixed |
| 2.8mm | |
| Lens Mount | M12 |
| Aperture FOV | F1.6 , Fixed |
| Horizontal field of view: 93.8° | |
| Illuminator | |
| IR LEDs | 2 |
| IR Range | Up to 30m |
| Wavelength | 850nm |
| White LEDs / Warmlights | N / A |
| Compression Standard | |
| Video Compression | S+265 / H.265 / H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression Audio Bit Rate | G.711 / G.711U / ADPCM |
| 8K~48Kbps | |
| Image | |
| Max. Resolution | 2592×1520 |
| Main Stream | PAL: 25fps (25921520 , 25601440 , 2304 1296 , 1920 1080 , 1280 720) |
| NTSC: 25fps (25921520 , 25601440) , 30fps (2304 1296 , 1920 1080 , 1280 720) | |
| Sub Stream | PAL: 25fps (704576 , 704288 , 640 360 , 352 288) |
| NTSC: 30fps (704480 , 704240 , 640 360 , 352 240) | |
| Image Setting | Saturation , brightness , contrast , sharpness , adjustable by client software or web browser |
| Image Enhancement ROI | BLC / 3D DNR / HLC |
| N / A | |
| OSD | 1616 , 32 32 , 48 48 , 64 64 , adaptable size , Letters Such as Week , Date , Time , Total 3 Regions |
| Picture Overlay | N / A |
| Privacy Mask | Yes , 4 regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection , Mask Alarm , IP Address Conflict |
| Video Analytics | Tripwire , Perimeter |
| Network | |
| ANR | Yes , auto store video in SD card when NVR disconnected , and upload video to NVR when resumed connection (Only Support NT-SERIES NVR) |
| Protocols | TCP / IP , HTTP , FTP , DHCP , DNS , DDNS , MULTICAST , IPV4 , NTP , UDP , Telnet |
| System Compatibility | ONVIF (PROFILE S / T / G) , SDK , CGI (IE) , P2P(Mutually exclusive with Profile G) |
| Remote Connection | 7 |
| Client | Netvideo , Videosight |
| Web Version | Web5 |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio I / O | Mic in |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot , up to 512 GB |
| General | |
| Web Client Language | 16 languages |
| English , Russian , Spanish , Korean , Italian , Turkish , Simple Chinese , Traditional Chinese , Thai , French , Polish , Dutch , Hebraism , Farsi , Arabic , Vietnamese | |
| Operating Conditions | -35 ～65 , 0～95% RH |
| Power Supply | DC 12V±25% , PoE (802.3af) |
| Power Consumption | MAX: 6W (12V) MAX: 7W (PoE) |
| Protection | IP67 , Lightning protection , surge protection and voltage transient protection meets EN 55035:2017 |
| Dimensions | 116.6 83.7mm ( 4.59 3.30inch) |
| Weight | Metal+Plastic: 0.34Kg (0.75lb) Metal: 0.47Kg (1.04lb) |
`
