NT-IDP12
NT-IDP12

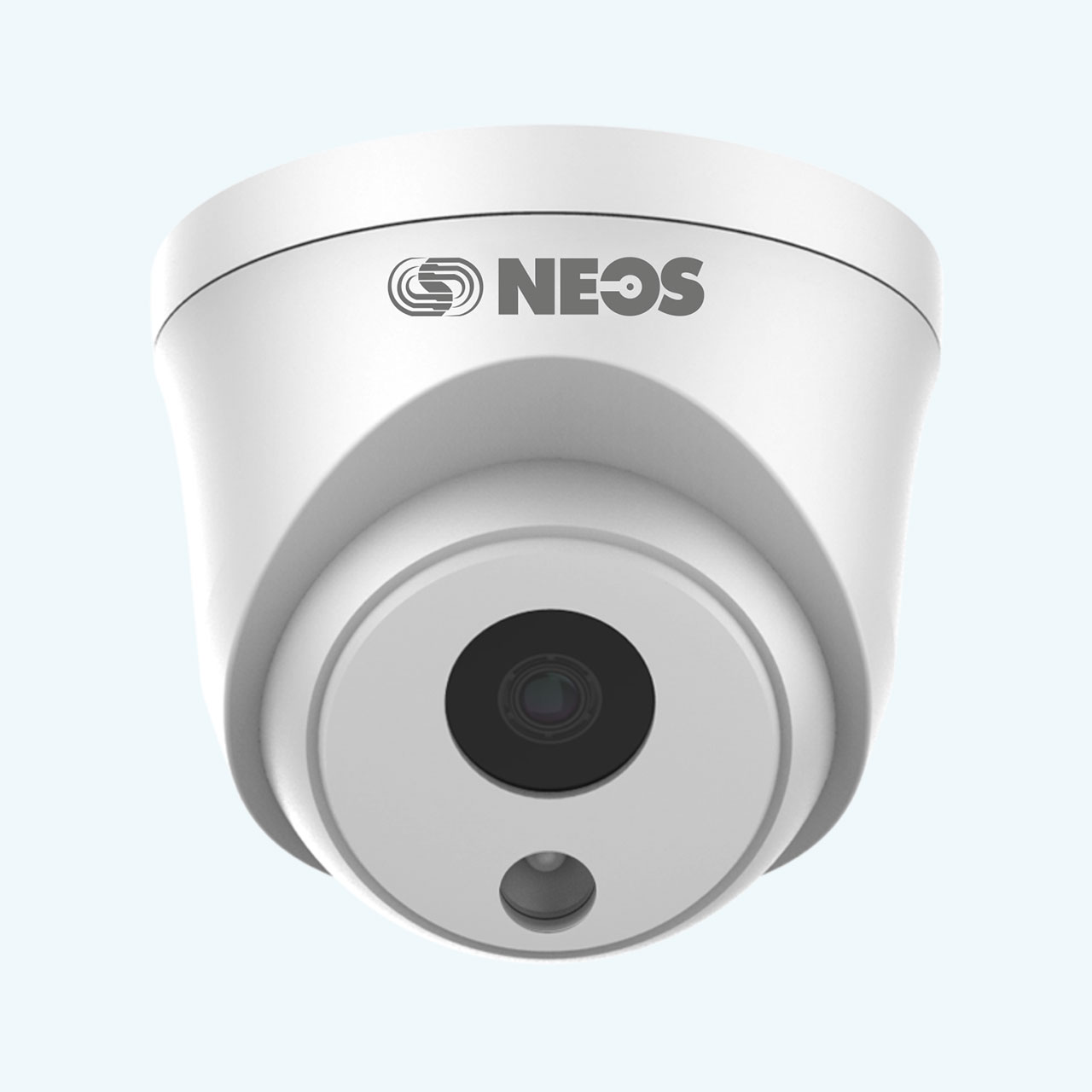

2MP IR Dome Camera
Enhanced productivity
Hassle-free Installation
Rich Features
Easy Maintenance
LED Indication
6 Extensions
TEC Certified
EMI-EMC Certified
1/2.8″ 2MP CMOS Image Sensor
Max resolution (1920 × 1080) @30fps
Video Compression S+265/H.265/H.264
DWDR 120dB, HLC, Smart Defog
2.8mm fixed lens
2 White LED with 15M distance
Built-in Microphone
30 Mtrs IR Range, IP67, PoE
| Camera | |
| Image Sensor | 1 / 2.8″ CMOS |
| Signal System | PAL / NTSC |
| Min. Illumination | Color: 0.02 Lux @ ( F1.6 , AGC ON) , B / W:0LUX with IR |
| Shutter Time | 1s to 1 / 100 , 000s |
| Day & Night | IR Cut Filter with Auto Switch |
| Wide Dynamic Range | DWDR |
| S / N | >39dB |
| Angle Adjustment | Bracket , pan 0~360° , tilt 0~80° , rotate 0~360°(R) |
| Lens | |
| Lens Type | Fixed Lens |
| Focus | 2.8 mm |
| Lens Mount | M12 |
| Aperture | F1.6 , Fixed |
| FOV | 104.9 °(H) ; 56.5°(V) ; 119.2°(D) |
| Illuminator | |
| IR LEDs | 2 |
| IR Range | Up to 30m |
| Wavelength | 850nm |
| White LEDs / Warm Lights | 2 |
| White Light Distance | 15m |
| Compression Standard | |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32Kbps~4Mbps |
| Audio Compression | G.711A / G.711U |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 1920×1080 |
| Main Stream | PAL: 25fps (1920 1080 , 1280 720 , 704 576 , 640 480) |
| NTSC: 30fps (1920 1080 , 1280 720 , 704 480 , 640 480) | |
| Sub Stream | PAL: 25fps (704 576 , 704 288 , 640 360 , 352 288) |
| NTSC: 30fps (704 480 , 704 240 , 640 360 , 352 240) | |
| White Balance | Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warm Light Lamp / Daylight Lamp / Filament |
| Lamp / Lock White Balance | |
| Image Enhancement | BLC / 3D DNR / HLC / AGC |
| ROI | Support 8 rectangular fixed regions of coding |
| OSD | Overlay of additional characters in 1 regions , 1 line , with a max of 48 Characters or 16 Chinese |
| character per region ; 16*16 / 32*32 / 48*48 | |
| Picture Overlay | YES |
| Privace Mask | Yes , 4Black static Areas regions |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection , Mask Alarm , IP Address Conflict |
| Linkage Method | Trigger Warmlight ; Trigger Capture |
| VCA | Tripwire ; Perimeter |
| Network | |
| ANR | NA |
| Protocols | HTTP ; TCP / IP ; UDP ; ICMP ; DHCP ; DNS ; NTP ; IPv4 ; Telnet ; Unicast |
| System Compatibility | ONVIF (PROFILE S / T / G) , SDK , Milestone , CGI , P2P |
| Remote Connection | ≤2 |
| Client | Video Sight , Net Video for Desktop |
| Web Version | Web6 |
| Interface | |
| Communication Interface | 1*RJ45 10M / 100M self-adaptive Ethernet port |
| Alarm | NA |
| Audio I / O | Built in Mic |
| Reset Button | NA |
| On-board storage | NA |
| General | |
| Web Client Language | 19 languages |
| Simple Chinese , Traditional Chinese , English , Spanish , Italian , Turkish , Russian , Thai , French , Polish , Dutch , Arabic , Vietnamese , Japanese etc | |
| Operating Conditions | -30 ～60 , 0～95% RH |
| Power Supply | DC 12V±25% , MAX 6.5W ; PoE (802.3af) , MAX7W |
| Power Consumption | MAX: 6W (12V) MAX: 10W (PoE) |
| Protection | IP67 , Lightning protection , surge protection 4000V and ESD6000V |
| Dimensions | 117(L) 117(W) 96(H)mm |
| Weight | 0.35kg |
`
