NT-IPS22AT
NT-IPS22AT

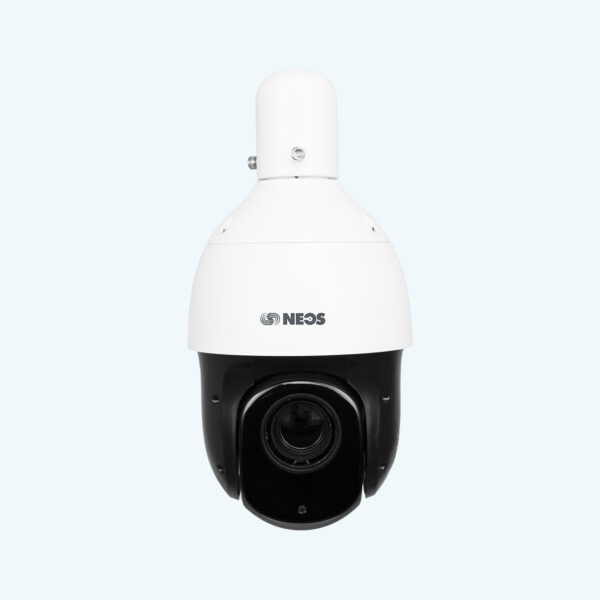

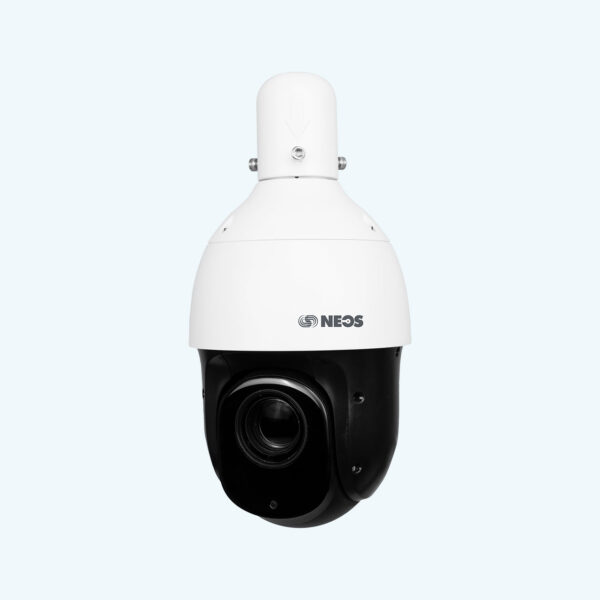

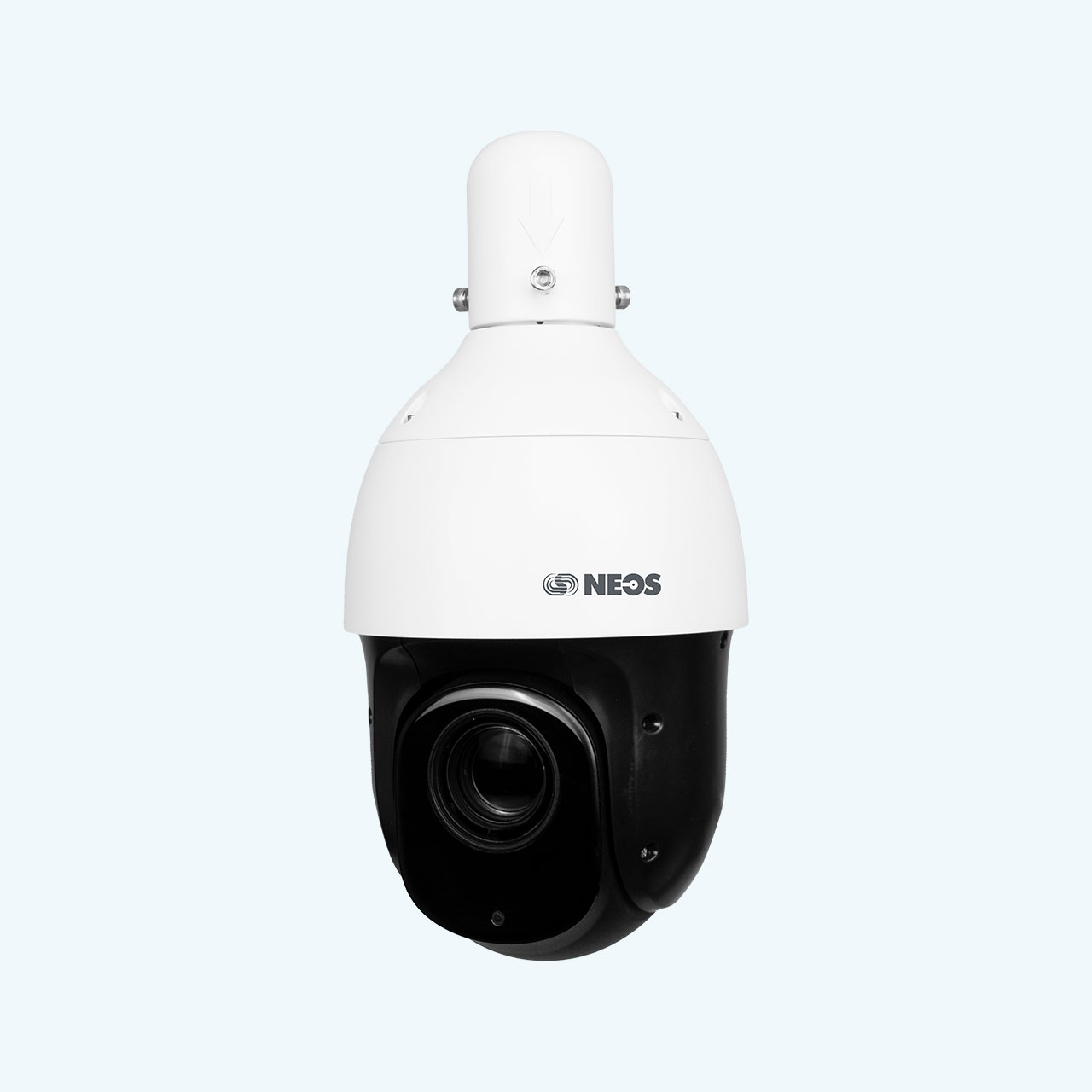

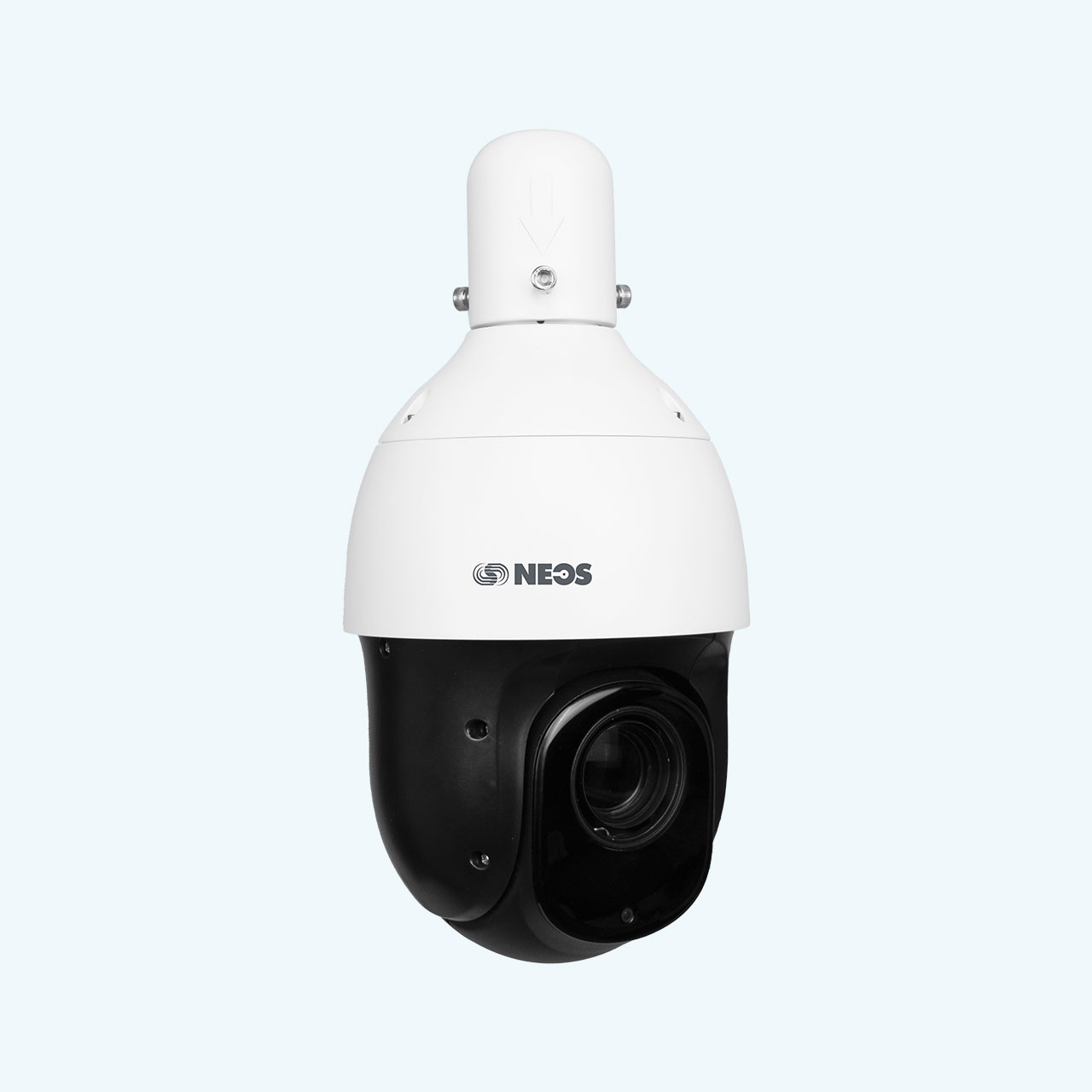

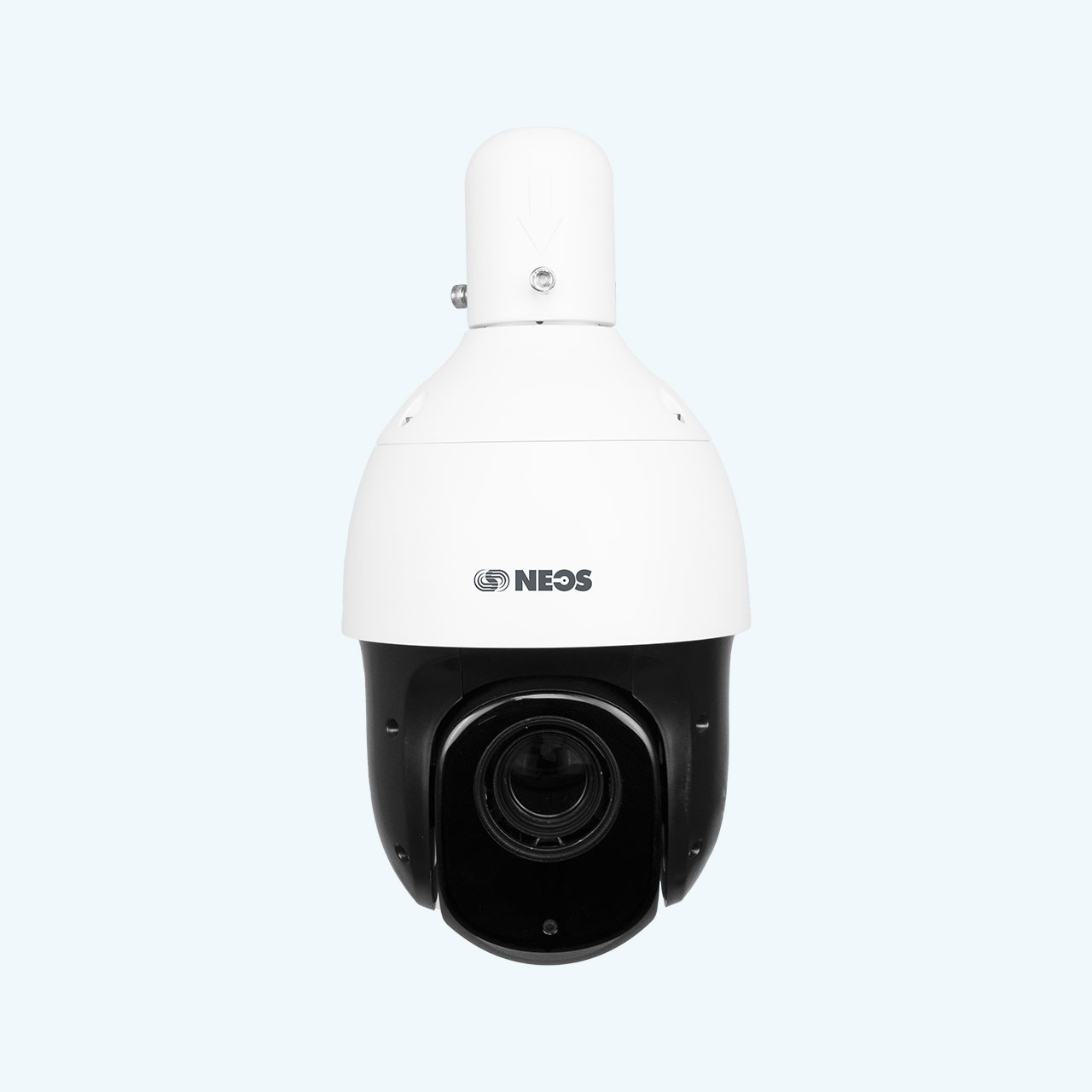

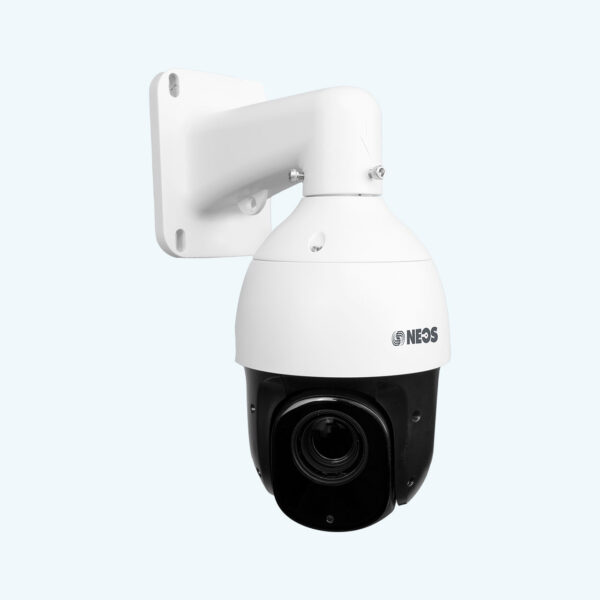

2MP 33x Starlight Autotracking H.265 POE IR PTZ Camera
Enhanced productivity
Hassle-free Installation
Rich Features
Easy Maintenance
LED Indication
6 Extensions
TEC Certified
EMI-EMC Certified
1/2.8″ 2MP CMOS Image Sensor
Max resolution (1920 × 1080) @60fps
Video Compression S+265/H.265/H.264
WDR 140dB,HLC,BLC, Smart Defog, ROI, Triple Stream
4.6mm-152 mm Lens
33x,Optical Zoom, 16x Digital Zoom, Auto Tracking
Built-in Microphone, SD Card Slot, Reset Button
150 Mtrs IR Range, IP66, PoE
| Camera | |
| Image Sensor | 1 / 2.8″ CMOS |
| Signal System | PAL / NTSC |
| Minimum Illumination | Color: 0.002 Lux @(F1.6 , AGC ON) |
| B / W:0.001Lux @(F1.6 , AGC ON) | |
| 0 Lux with IR | |
| White Balance | Auto / ATW / Manual |
| BLC | Y |
| HLC | Y |
| Smart Defog | Y |
| WDR | 140dB |
| Digital Noise Reduction | 3D DNR |
| Exposure Mode | Auto / Manual / Iris First / Shutter First |
| Shutter Time | 1 / 1s～1 / 100000s |
| Day& Night | IR Cut Filter with Auto Switch |
| Optical Zoom | 33x |
| Digital Zoom | 16x |
| Privacy Masking | 24 Privacy Mask Programmable; Optional Multiple Colors |
| Auto Focus | Auto / Semi-automatic / Manual |
| OSD | Size:16×16 , 32×32 , 24×24 , 48×48 , 64×64 , 96×96 Letters , Week , |
| Date , Time , Total 5 Regions , PTZ Angle Superposition | |
| Lens | |
| Focal Length | 4.6-152mm , 33x |
| Zoom Speed | Approx.5s(Optical Wide-Tele) |
| Angle of View | 62.1°（w）～2.18°（t） |
| Minimum Working Distance | 1-1.5m(Wide-Tele) |
| Aperture Range | F1.5-F4.0 |
| Pan & Tilt | |
| Pan Range | 360° Endless |
| Pan Speed | Pan Manual Speed: 0.1° -240° / s |
| Pan Preset Speed: 240° / s | |
| Preset Accurity | ±0.2° |
| Tilt Range | -16°-90° (Auto Flip ) |
| Tilt Speed | Tilt Manual Speed: 0.1°-240° / s |
| Tilt Preset Speed: 240° / s | |
| 3D Position | Y |
| Number of Preset | 500 |
| Scan | 8 |
| Cruise | 16 , up to 32 Presets per Cruise |
| Pattern | 8 , Each One With 600s Memory or 300 Orders |
| Power loss recovery | Y |
| Guard Action | Preset / Cruise / Pattern / Scan |
| PTZ Position Display | Y |
| Freeze Frame | Y |
| RS-485 Protocols | N / A |
| Infrared | |
| IR Irradiation Distance | 150m |
| IR Irradiation Angle | Adjustable by Zoom |
| Interface | |
| Audio Input | 1-ch Mic in(Line in Interface) |
| Line Input 2-2.4V[p-p]; Output Impedance 1KΩ , ±10% | |
| Audio Output | 1-ch , Line level , Impendance: 600Ω |
| Enthernet | 1-ch RJ45 10M / 100M |
| Alarm Input | 1-ch |
| Alarm Output | 1-ch |
| On-board Storage | MicroSD Card Slot , up to 128GB |
| BNC | N / A |
| RS-485 | N / A |
| RESET | Y |
| Extension | N / A |
| Network | |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 1920×1080@50 / 60fps; |
| 1280×960@50 / 60fps; | |
| 1280×720@50 / 60fps | |
| 704×576@50 / 60fps | |
| 704×480@50 / 60fps | |
| Sub Stream | 704×576@25fps / 704×480@30fps |
| 352×288@25fps / 352×240@30fps | |
| 176×144@25fps / 176×120@30fps | |
| Third Stream | 1920×1080@25 / 30fps； |
| 1280×960@25 / 30fps | |
| 1280×720@25 / 30fps； | |
| 640×480@25 / 30fps； | |
| 704×576@25fps； 704×480@30fps； | |
| 704×288@25fps； 704×240@30fps； | |
| 352×288@25fps； 352×240@30fps | |
| Image Compression | S+265 / H.265 / H.264 High Profile / MJPEG |
| ROI Encoding | 7 Dynamic Areas for Both Main and Sub Stream |
| Audio Compression | G711A / G711U / ADPCM / AAC |
| Protocols | TCP / UDP / HTTP / MULTICAST / UPnP / DHCP / PPPoE / DDNS / FTP / N TP / RTSP / SNMP / SMTP |
| Remote Connection | 10 Users Access at the Same Time |
| IP Address | Support static , dynamic IP address , Customized MTU , Customized Network card |
| System Compatibility | ONVIF (Profile S) , SDK , P2P |
| Advance | |
| Autotracking Early Warning(AEW) | N / A |
| Video Analytics(IVA) | Tripwire / Double Tripwire / Perimeter / Object Abandon / Object Lost / Running / Loitering / Parking / Crowd / Audio Abnormal Detection / Video Abnormal Detection |
| Smart-tracking | By Manual / Panorama / Tripwire / Perimeter |
| Intelligent Alarm | Motion Detection , Mask Alarm , Port Alarm , Network Disable Alarm , IP Conflict , MAC Conflict Detection |
| General | |
| Language | English , Spanish , Korean , Italian , Turkish , Thai , Russian , Traditional Chinese , Simplified Chinese , Polish , French |
| Operating Conditions | -40°C-70°C , 0～95% RHG |
| Power Supply | DC12V , POE+ |
| Power Consumption | 18.6W(IR OFF) / 32.36W(IR ON ) |
| Circuit Protection | TVS 6000V , Lightning / Surge 4000V Protection |
| Impact Protection | IP66 |
| IR LEDs | 4pcs |
| White LEDS | N / A |
| Wiper | N / A |
| Dimensions | 372mmx222mmx222mm |
| Weight | 4.8KG (IP PTZ Only) , 7.5KG (with Packing Box) |
`
