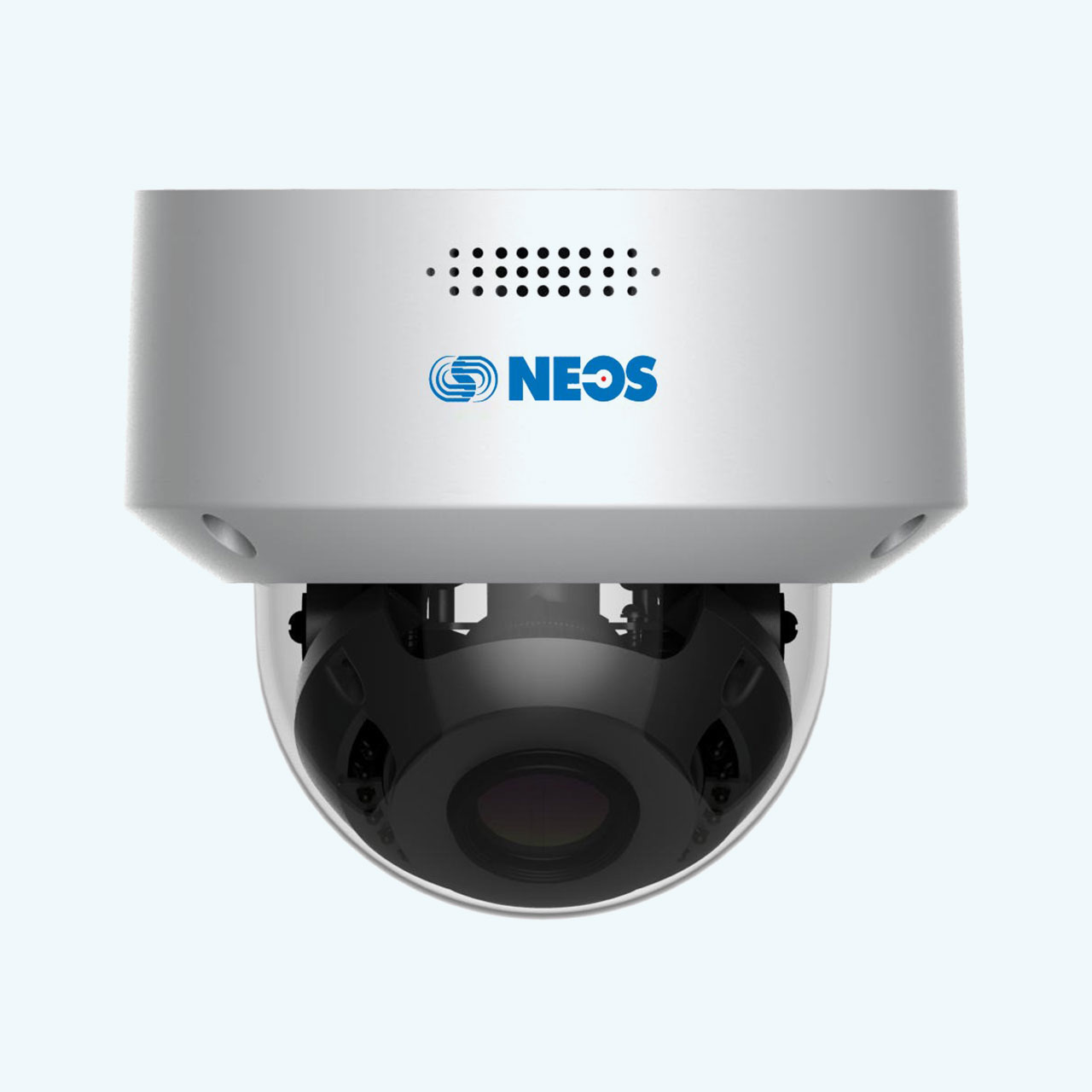

NT-IDN22V
NT-IDN22V
2MP Vandal-proof Varifocal IR Dome
Enhanced productivity
Hassle-free Installation
Rich Features
Easy Maintenance
LED Indication
6 Extensions
TEC Certified
EMI-EMC Certified
1/2.7″ 2MP CMOS Image Sensor
Max resolution (1920 × 1080) @30fps, Up to 1080P
Video Compression S+265/H.265/H.264
WDR 100dB,HLC,Smart Defog Corridor Mode,ROI
Manual 2.8-12mm lens
SD Card Slot, Reset Button
30 Mtrs IR Range, IP66, IK10, PoE
| Camera | |
| Image Sensor | 1 / 2.7″ CMOS |
| Signal System | PAL / NTSC |
| Min. Illumination | Color: 0.05 Lux |
| B / W: 0.01 Lux，0 Lux with IR | |
| Shutter Time | 1s to 1 / 100 , 000s |
| Lens | Manual 2.8-12mm , Angle of View: 101°～38° |
| Lens Mount | φ14 |
| Day& Night | IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 100 dB |
| Digital Noise Reduction | 3D DNR |
| Compression Standard | |
| Video Compression | S+265 / H.265 / H.264H / H.264M / H.264B / MJPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A / G.711U / ADPCM |
| Audio Bit Rate | 8K～48Kbps |
| Image | |
| Max. Image Resolution | 1920×1080 |
| Frame Rate | PAL:1080p@25fps，960p@25fps，720p@25fps，D1@25fps |
| NTSC：1080p@30fps，960p@30fps，720p@30fps，D1@30fps | |
| Mainstream | 1080P(1920*1080) |
| Substream | 4CIF（704×576） |
| 3rd Stream | CIF（352×288） |
| Image Settings | Brightness , Saturation , Contrast , Flip Mode Adjustable by Client Software or Web Browser |
| HLC | Y |
| Smart Defog | Y |
| Corridor Format | Y |
| ROI | Y |
| Privacy Mask | Y |
| Picture Overlay | Y |
| OSD | 16×16 , 32×32 , 24×24 , 48×48 , 64×64 Size Letters Such as Week , Date , Time , Total 5 Regions |
| Network | |
| Network Storage | FTP |
| NTP | Y |
| ANR | Y |
| Video Analytics | Tripwire / Perimeter / alarm times count |
| Alarm Trigger | Motion Detection / IP Conflict / MAC Conflict / Mask Alarm |
| Protocols | TCP / UDP / HTTP / MULTICAST / UPnP / DHCP / DDNS / FTP / NTP / RTSP / SMTP |
| Remote Connection | ≤7 |
| System Compatibility | ONVIF (Profile S) , P2P , SDK , CGI |
| Interface | |
| Audio Input | 1-ch |
| Audio Output | 1-ch |
| Communication Interface | 1-ch RJ45 10M / 100M Ethernet Interface |
| Alarm Input | 2-ch |
| Alarm Output | 2-ch |
| On-board Storage | MicroSD Card Slot , up to 128GB |
| Extension | Reset |
| General | |
| Language | English , Simplified Chinese , Traditional Chinese , Spanish , Italian , Korean , Turkish , Russian , Thai , polish , French |
| Operating Conditions | -35℃～60℃ , 0～95% RHG |
| Power Supply | DC 12 V ± 25% , POE |
| Power Consumption | Max. 3W(IR OFF) (ICR Instant Switch 12W) |
| IR Light | 32pcs φ5 Array IR LEDs |
| IR Distance | 30m |
| Impact Protection | IP66 , IK10 |
| Dimensions | 150mm×150mm×122mm |
| Weight | 1.0KG (IP Camera Only); 1.3KG (with Packing Box) |
`
NT-IDN22V
2MP Vandal-proof Varifocal IR Dome
